• Medallions
• Fixtures
• Lampshades:
  • Kitchen/Nook
  • Everywhere Else

Plaster Medallions CP746

• Contractor drills three holes, for wires and bar screws. Canopies will be on rings and 1-1/2" and 1-1/4" off ceiling, for the 35" and 24".
• Precast Product Specs
• Installation (They recommend using (1-2) coats of oil-based or shellac-based primer.)
• Plaster Care

Fixtures (all unfinished brass) [Click on thumbnail for large picture]

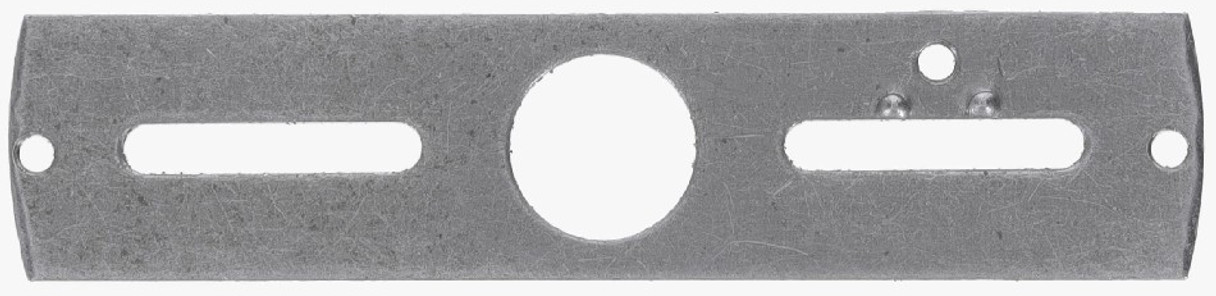

4-1/4" Cross Bar with 8/32 Tapped Ground Hole
Grand Brass Lamp Parts

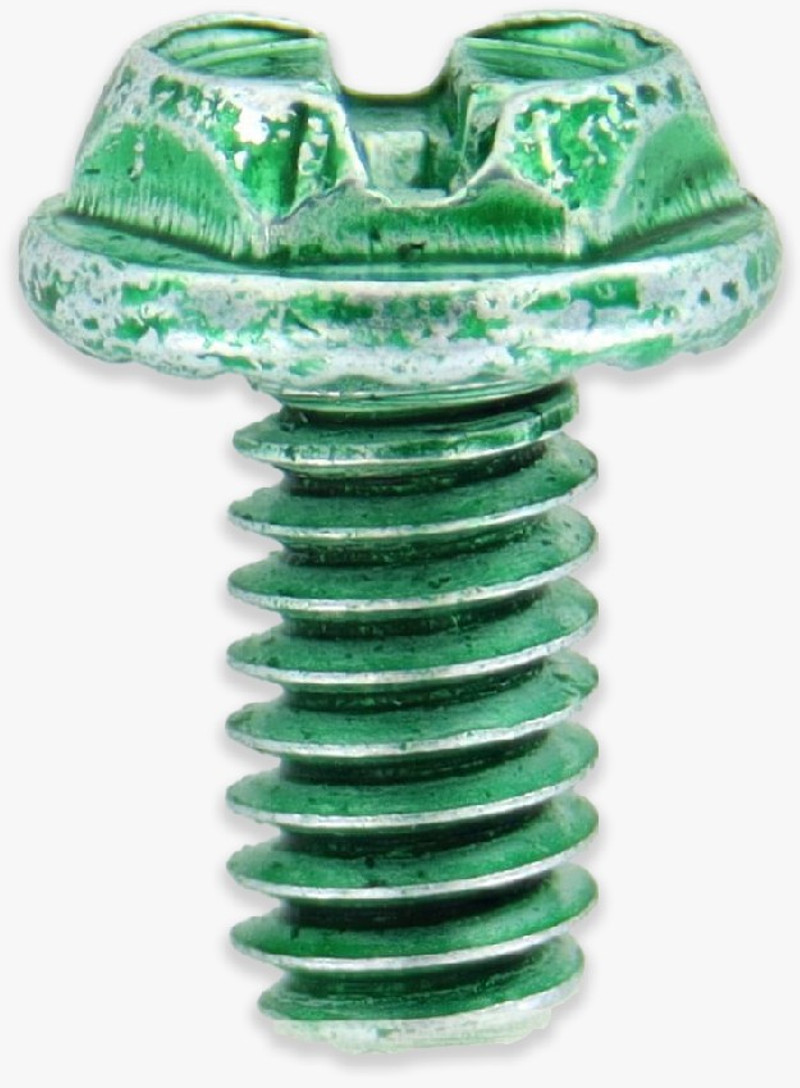

8/32 Steel Ground Screw
Grand Brass Lamp Parts

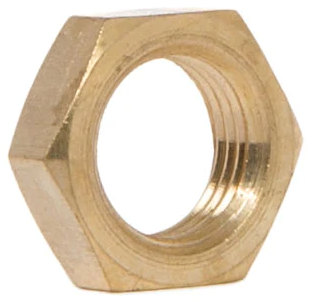

9/16" dia. Brass Hex Nut
Grand Brass Lamp Parts

Plated Steel Lock Washers
Grand Brass Lamp Parts

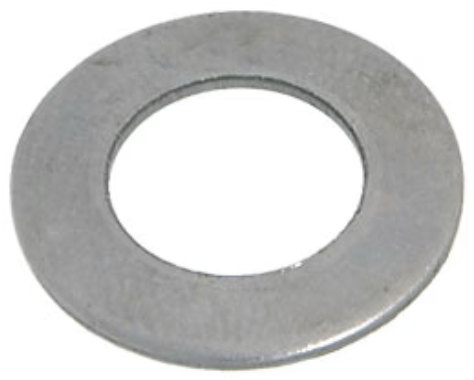

3/4" Steel Washer
Grand Brass Lamp Parts

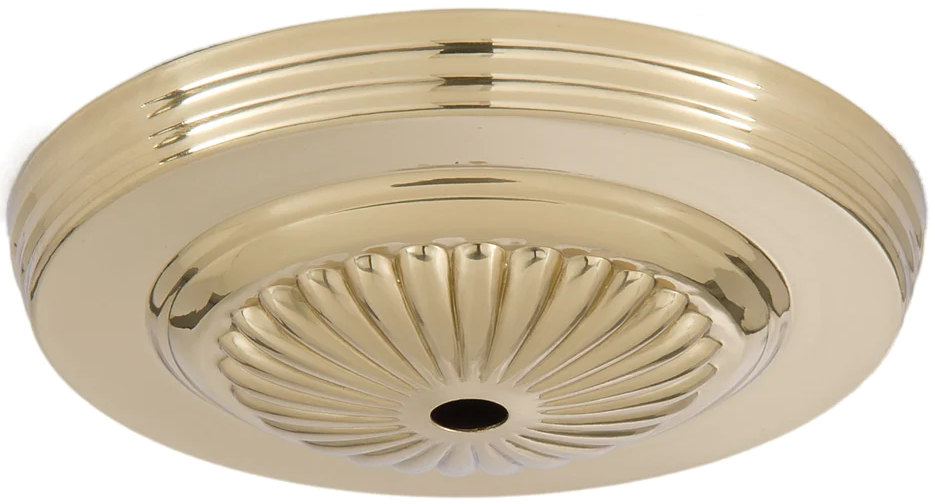

Embossed Starburst Design Canopy, 5-1/4" Wide x 1" High
Design chosen as this is what the dining room chandelier had. Also Carole across the street,
I drill 4-1/4" bar holes with my drill press. Hole size #26 drill bit.
Grand Brass Lamp Parts

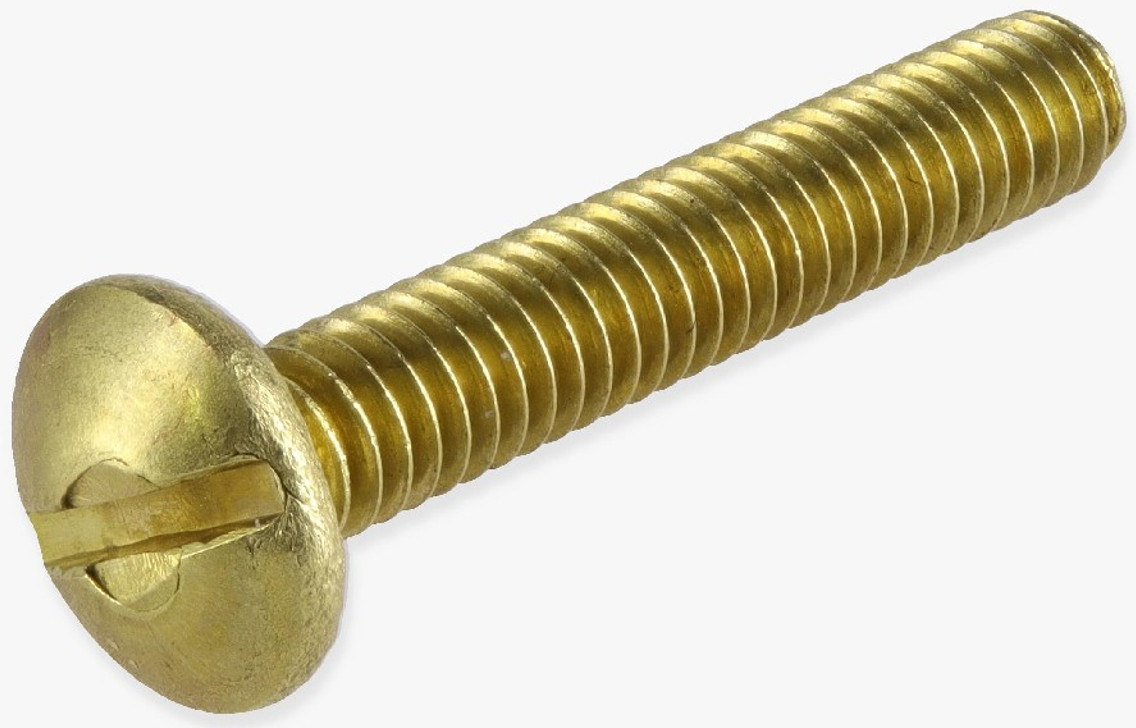

8/32 Slotted Round Head Brass Screws
Grand Brass Lamp Parts: 1" and 3" (longest)

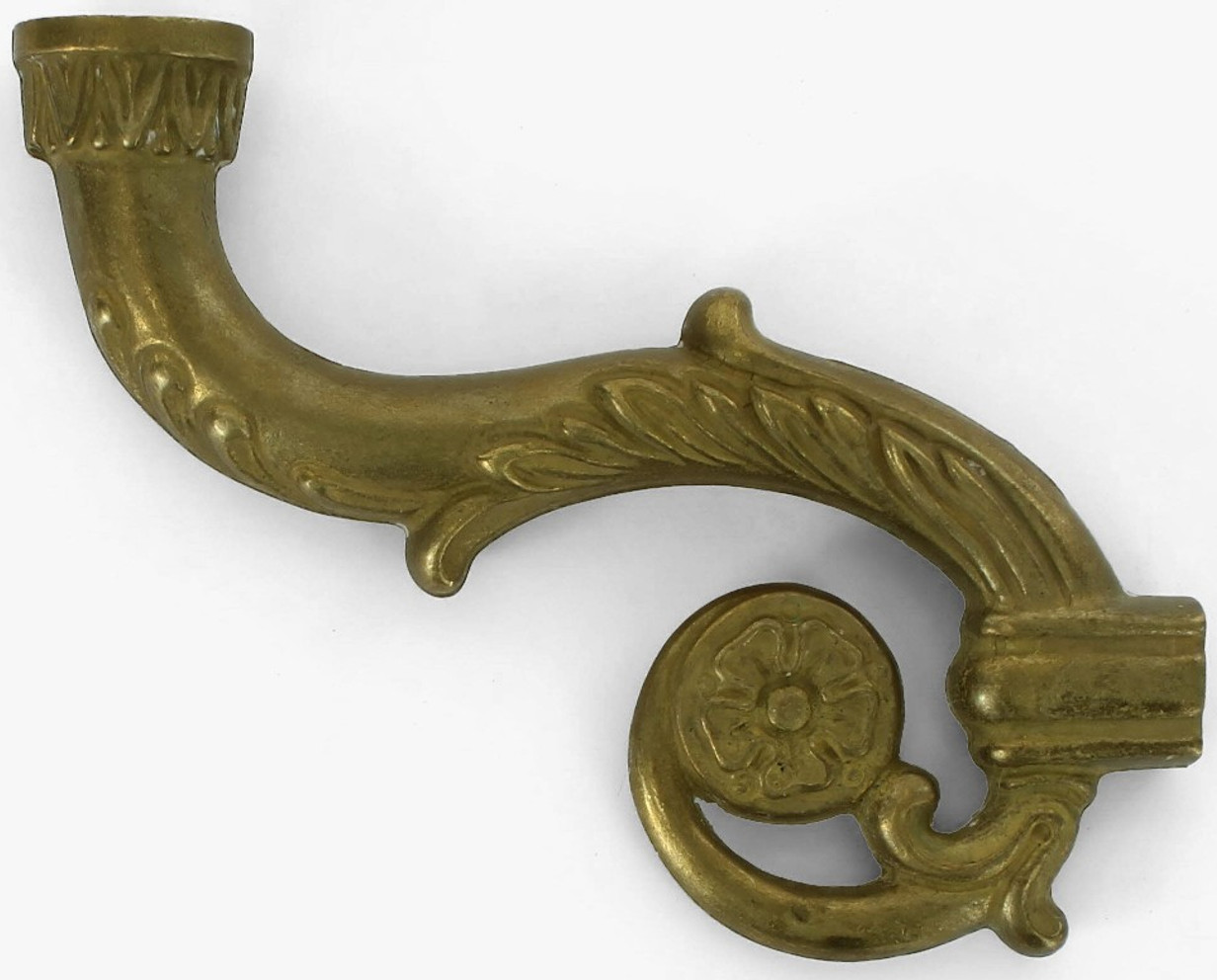

Long Up Arm with Scroll
Grand Brass Lamp Parts

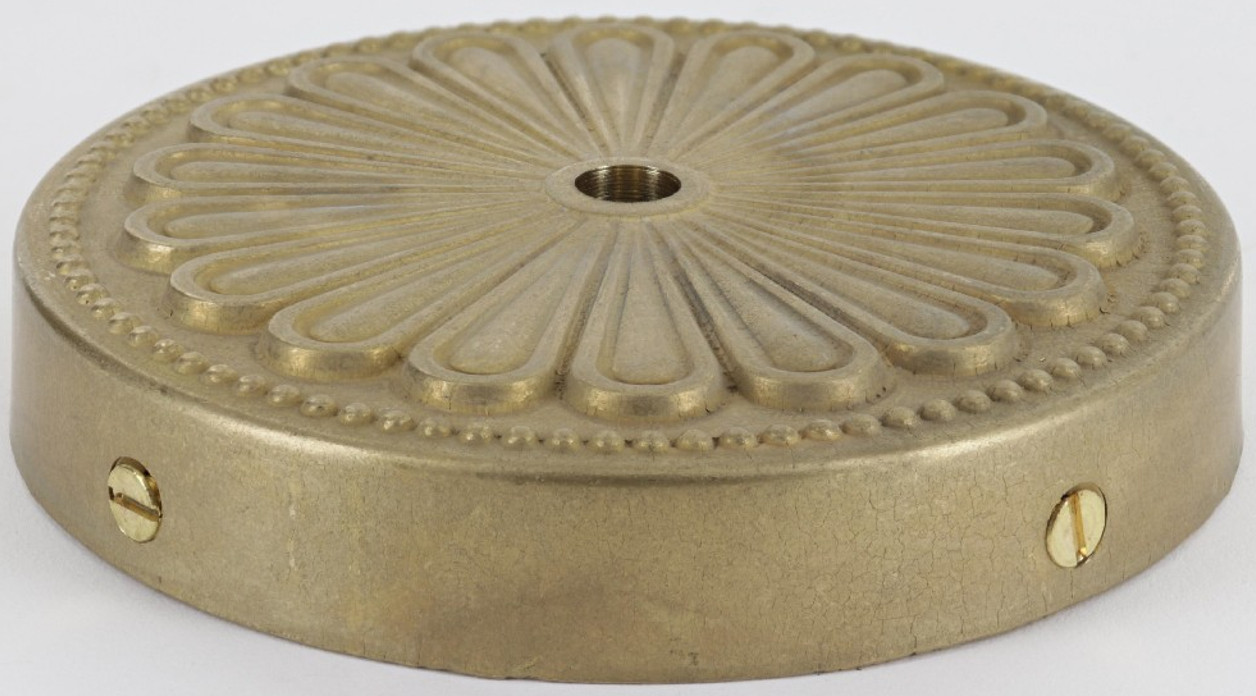

Backplate
Grand Brass Lamp Parts

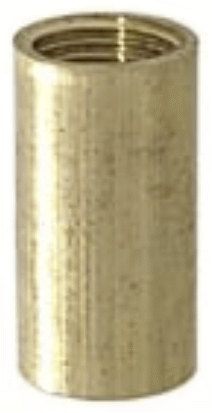

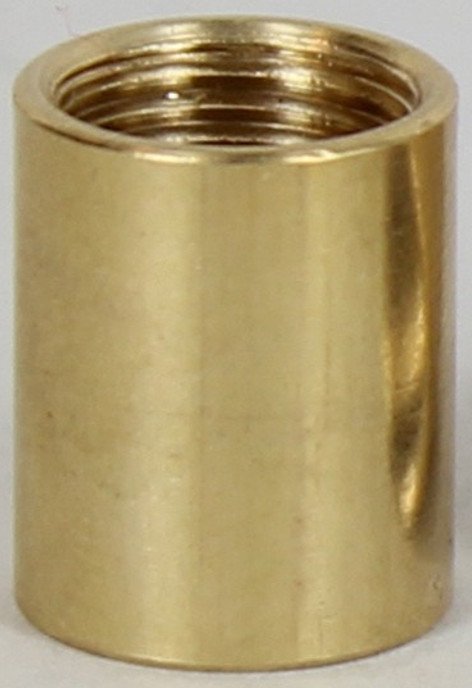

7/8" Height Unfinished Brass Coupling
Use for flush kitchen mounts between canopy and shade holder. Didn't want to smother canopy with shade holder. Could be another length.
Grand Brass Lamp Parts

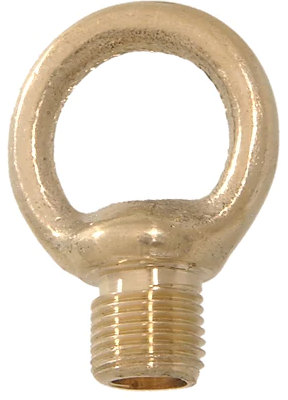

1" Cast Brass Loop with Wire Way, 1/8M
Grand Brass Lamp Parts

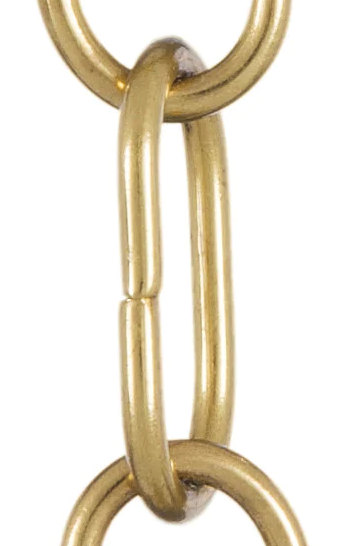

Solid Brass Oval Lamp Chain
Grand Brass Lamp Parts 1/8". Links are 1-1/2" x 7/8"

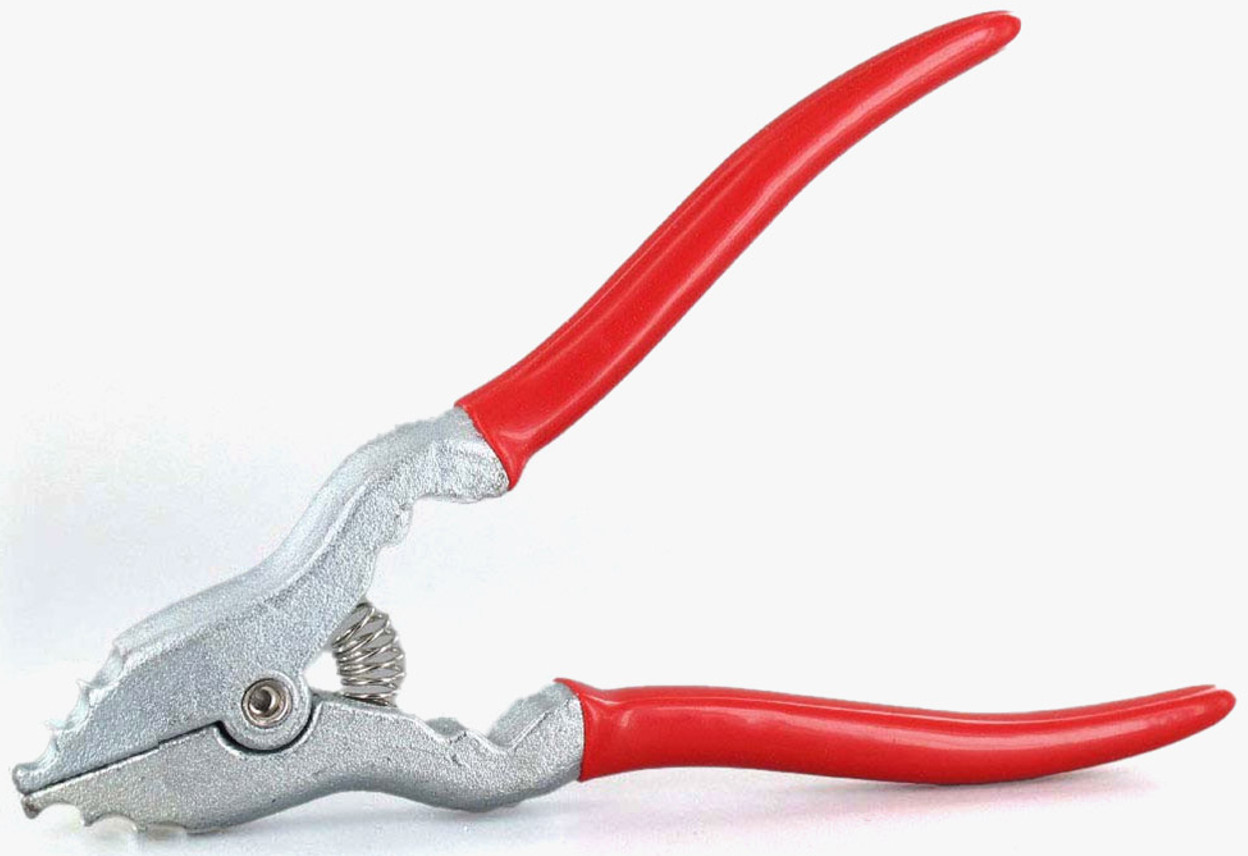

Chain Pliers
Grand Brass Lamp Parts

Masking Tape (tape to workbench to measure chain and wire)
Amazon

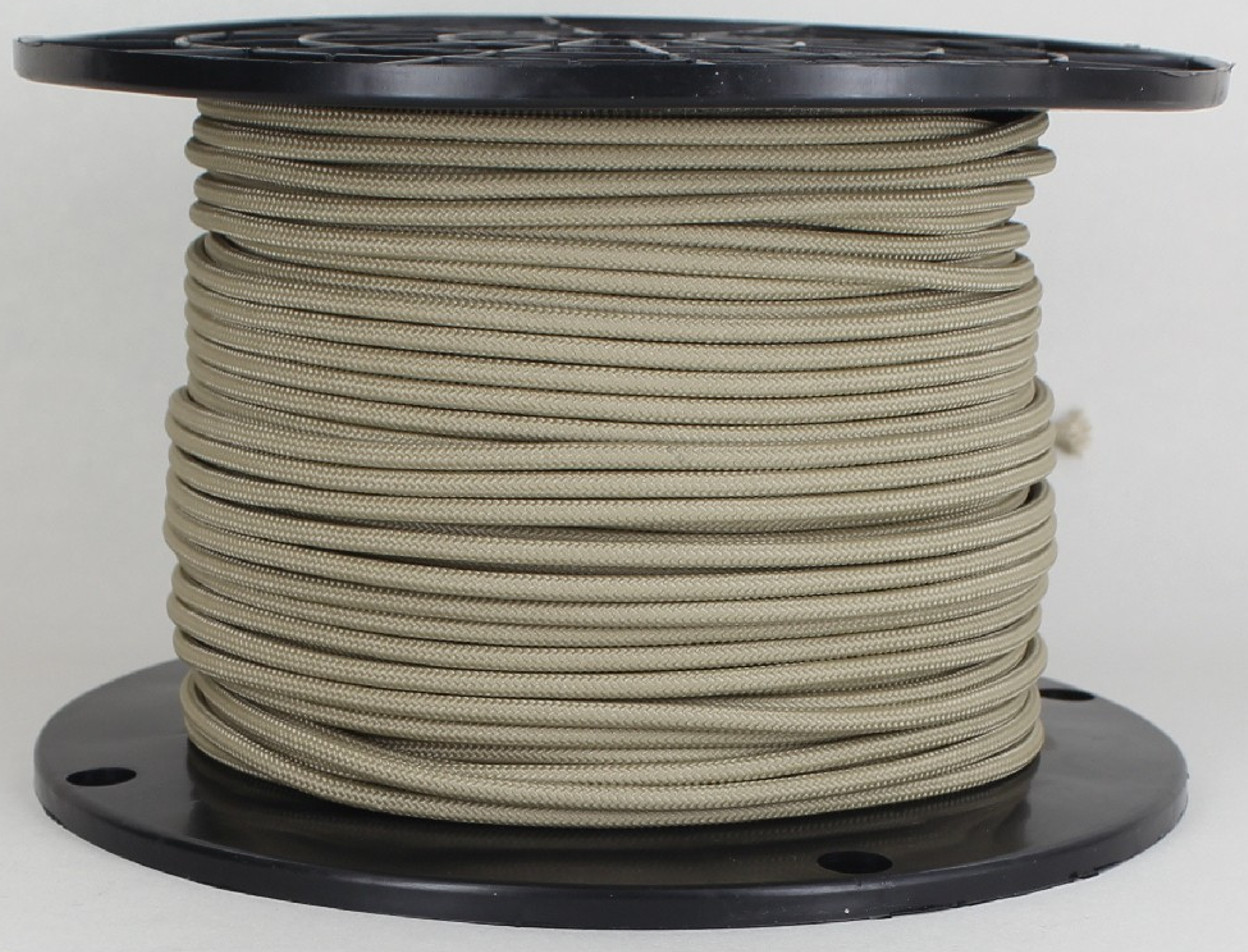

18/1 Wire, White Antique Gold
Grand Brass Lamp Parts (after 138', 250' is cheaper)

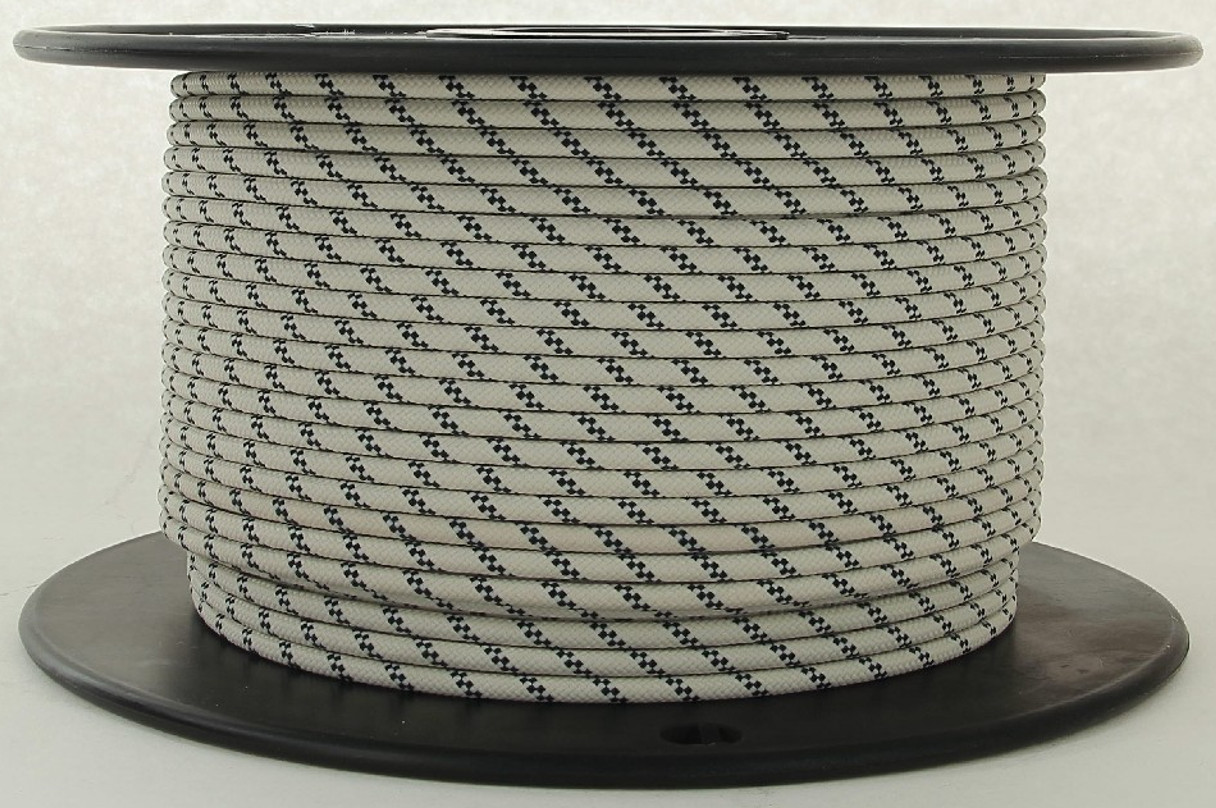

18/1 Wire, Oatmeal With Black Tracer
Grand Brass Lamp Parts (after 133', 250' is cheaper)

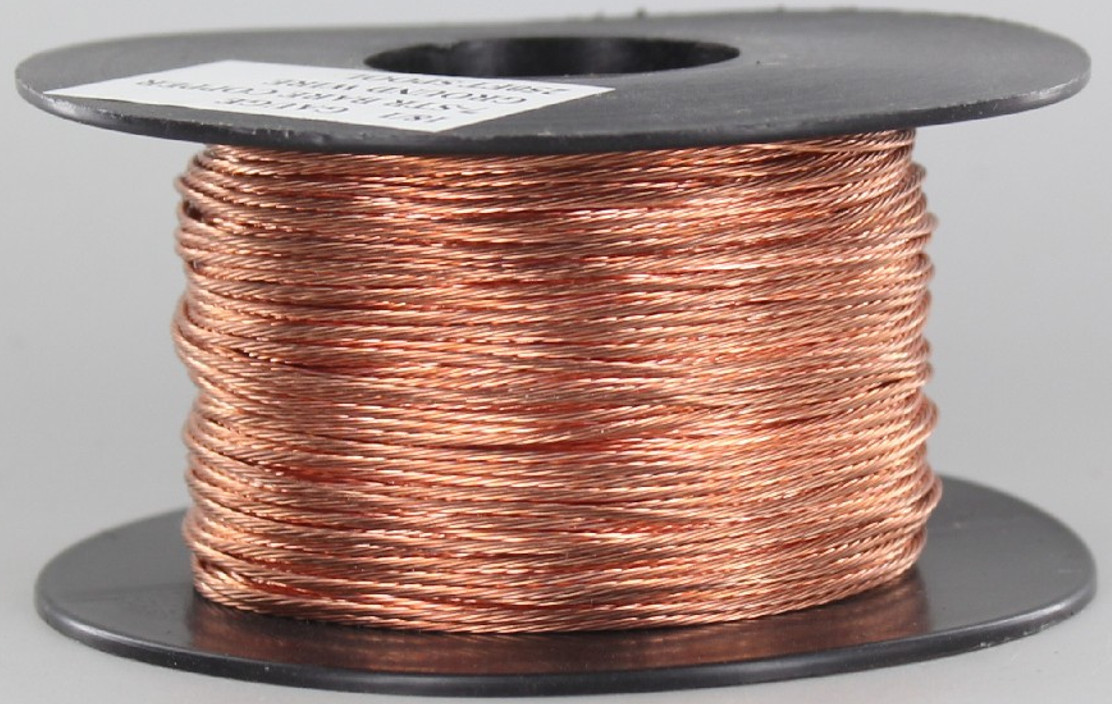

Bare Copper Ground Wire, 18 AWG
Grand Brass Lamp Parts (roll has 500')

1" Cast Brass Loop with Wire Way, 1/8M
This will screw directly into socket for 6" and 8" globes. Others get coupling and nipple.
Grand Brass Lamp Parts

Brass Ground Lug to slip 1/8 IP
Grand Brass Lamp Parts

9/16" Height Unfinished Brass Coupling.
One for every pendant shade holder, except 6" and 8" balls where the loop can screw into socket.
Grand Brass Lamp Parts

1/8 IP Solid Brass, All Thread Nipples: Choice of Lengths.
Use to extend the socket and bulb into the center for the larger shades. Maybe? 10"-1", 12"-2", 14"-3".
Socket top to bulb center: A19: 2" , A21: 2-3/4".
Grand Brass Lamp Parts

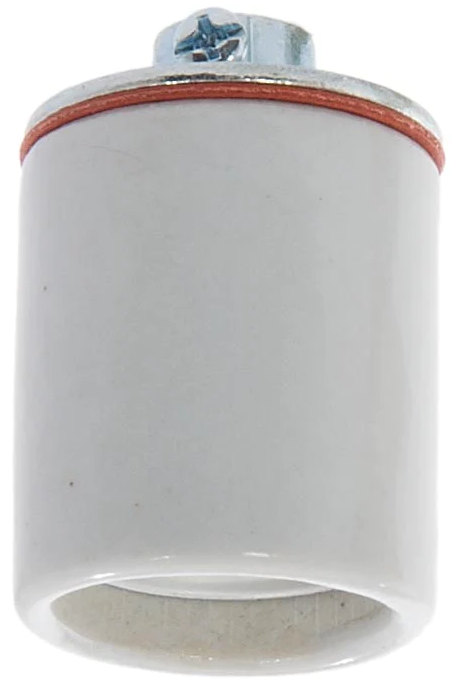

Medium Base Porcelain Socket, 2-1/4" High
Porches and bathrooms require Damp Location Rated. All will be damp rated.
Grand Brass Lamp Parts

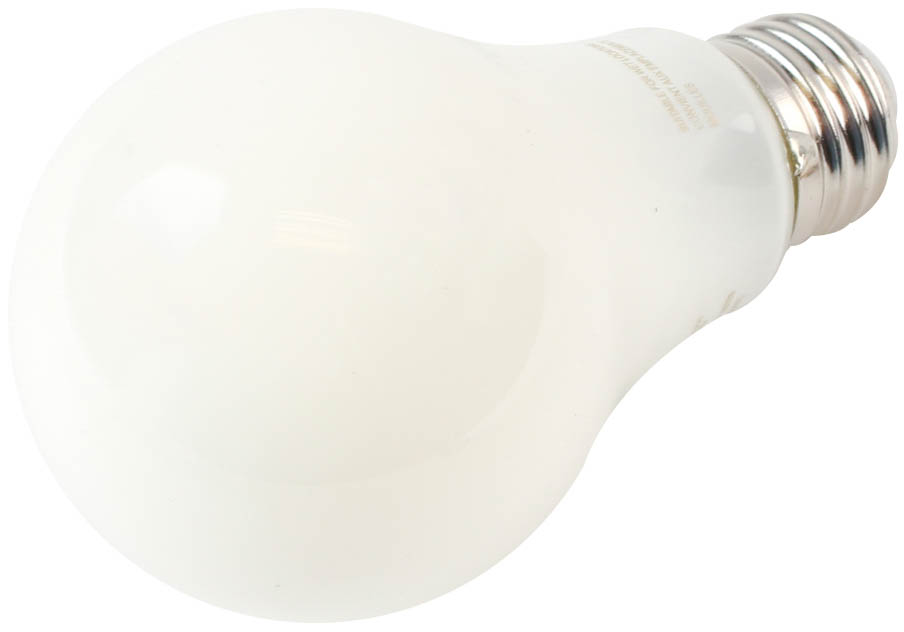

For Globes: Dimmable LED Bulb Enclosed Fixture Rated
Enclosed Fixture Rated bulbs at Home Deport have only 80 CRI.
90 CRI Philips Dimmable 12W 2700K at Bulbs.com (also 5, 8 and 9.5 watt)
These are all A19. There are some enclosed rated A15's for the 6" globes, but they are only 80 CRI.

For kitchen exposed bulbs:

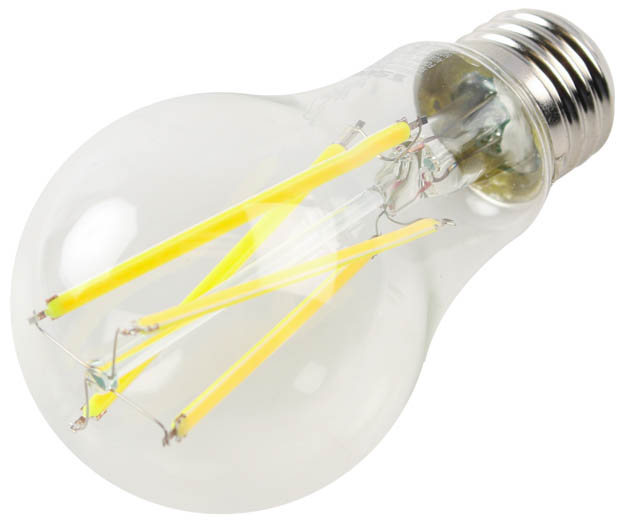

Satco Dimmable 12.5W 3000K 90 CRI Filament LED Bulb. Bulbs.com
Bulbrite Dimmable 8.5W 3000K 90 CRI Filament LED Bulb. Bulbs.com

Lampshades

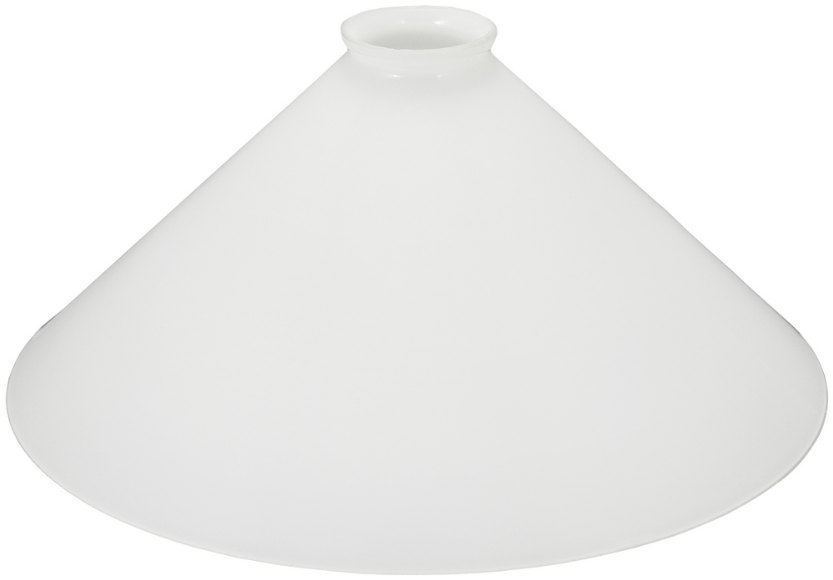

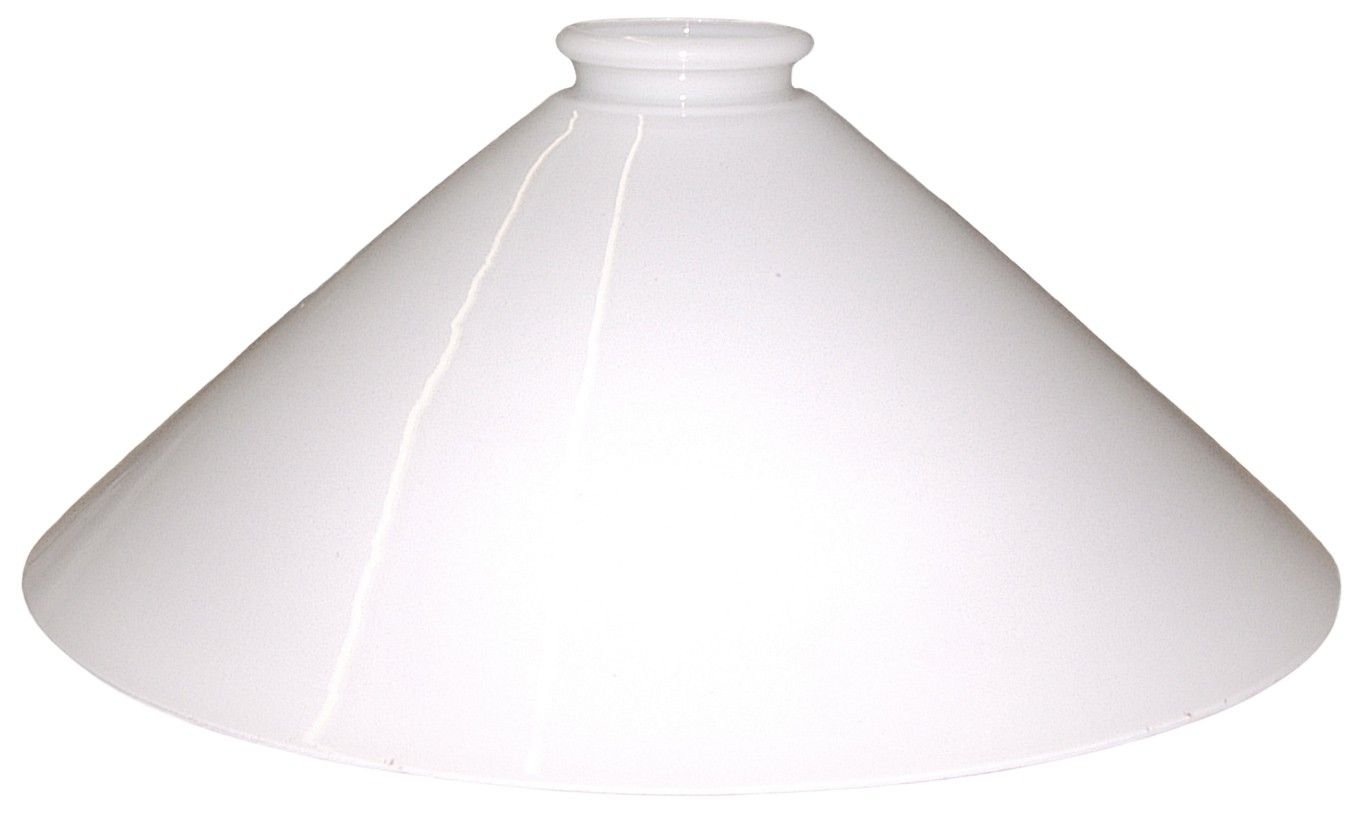

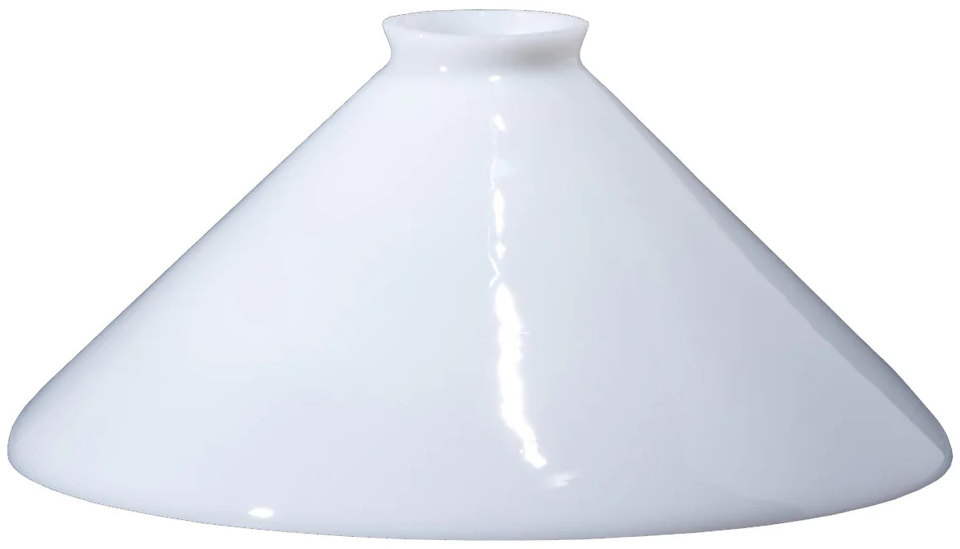

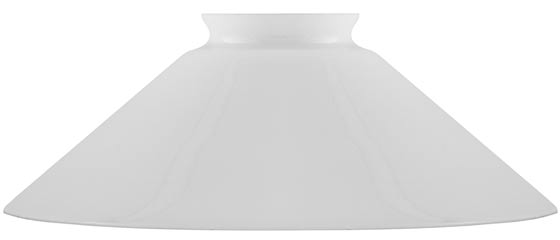

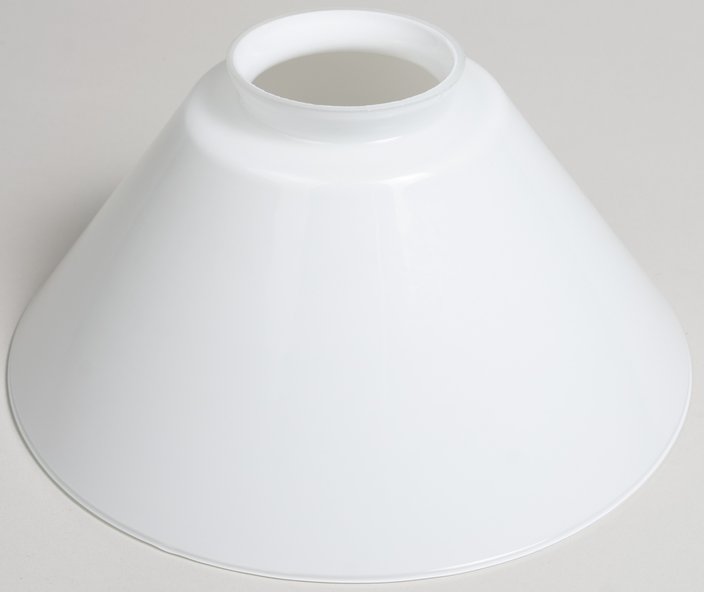

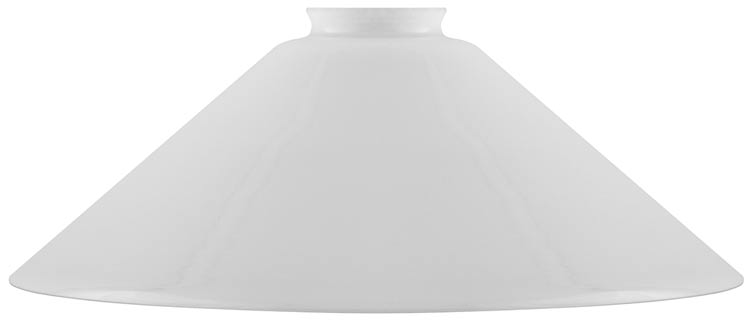

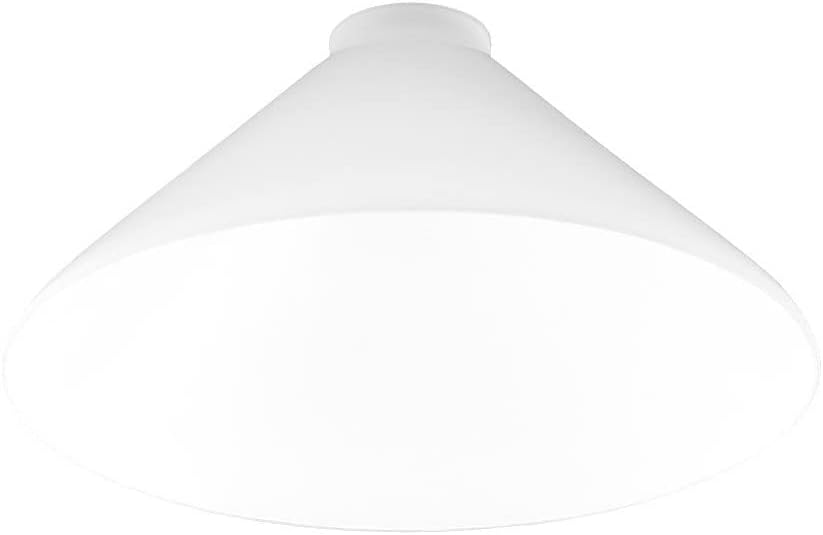

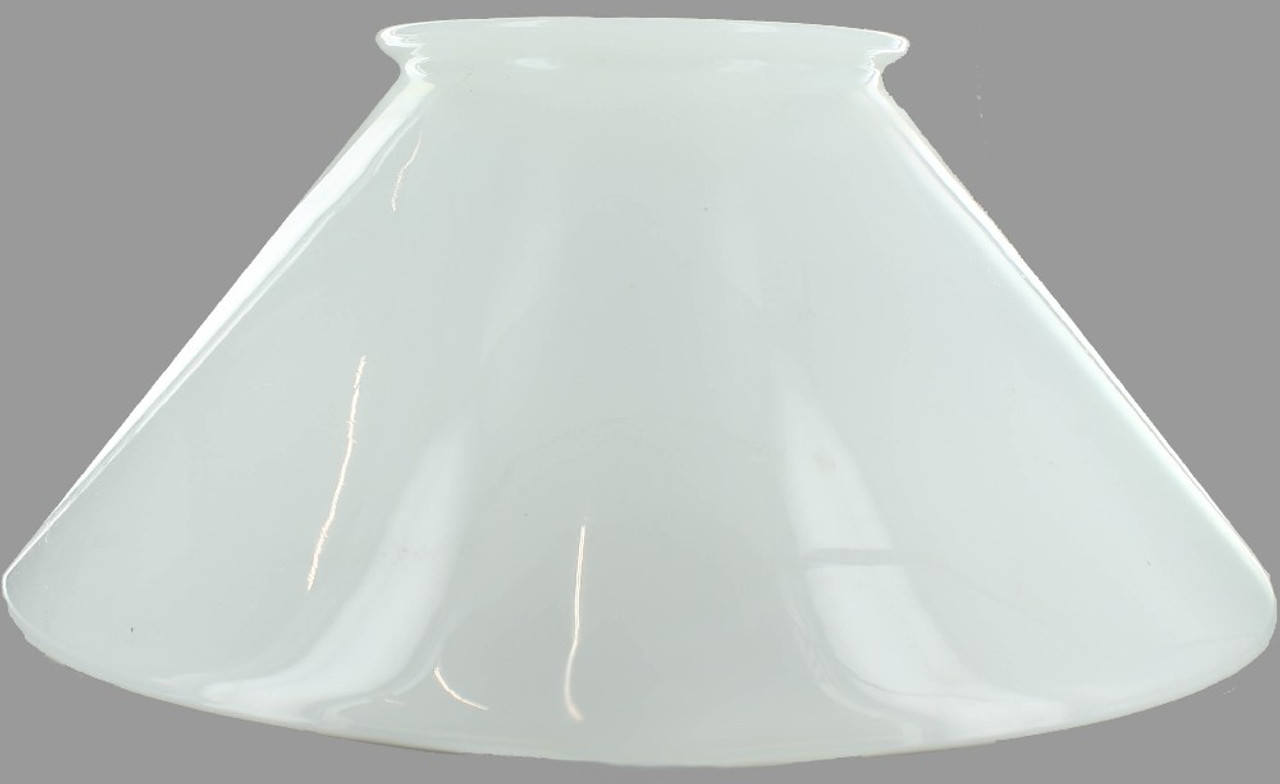

Kitchen/Nook: Cased Glass Cone Lampshades (9)

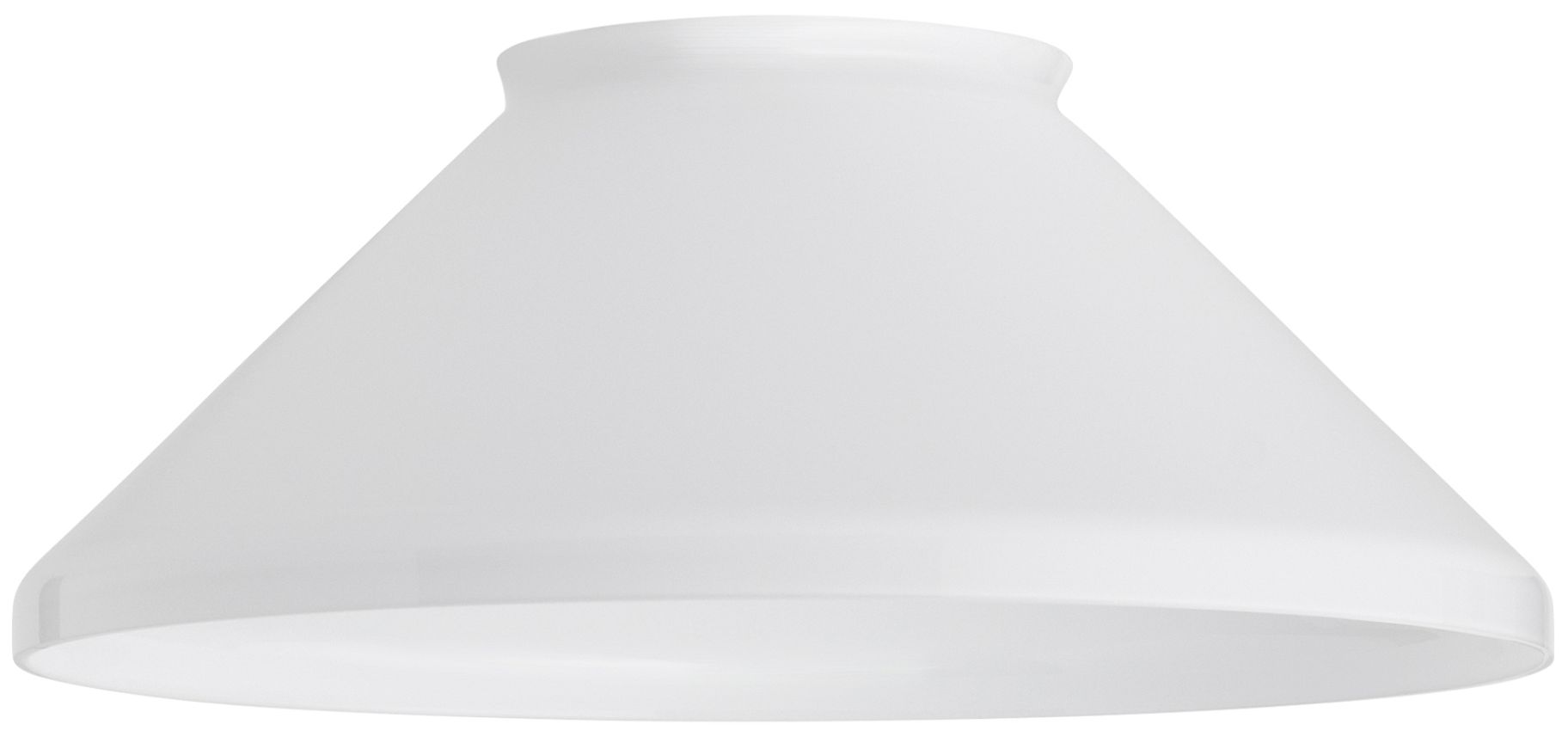

Two Eastmoreland 15", 6" Fitter
Fixture overall drop height: 14"
Bought from Rejuvenation

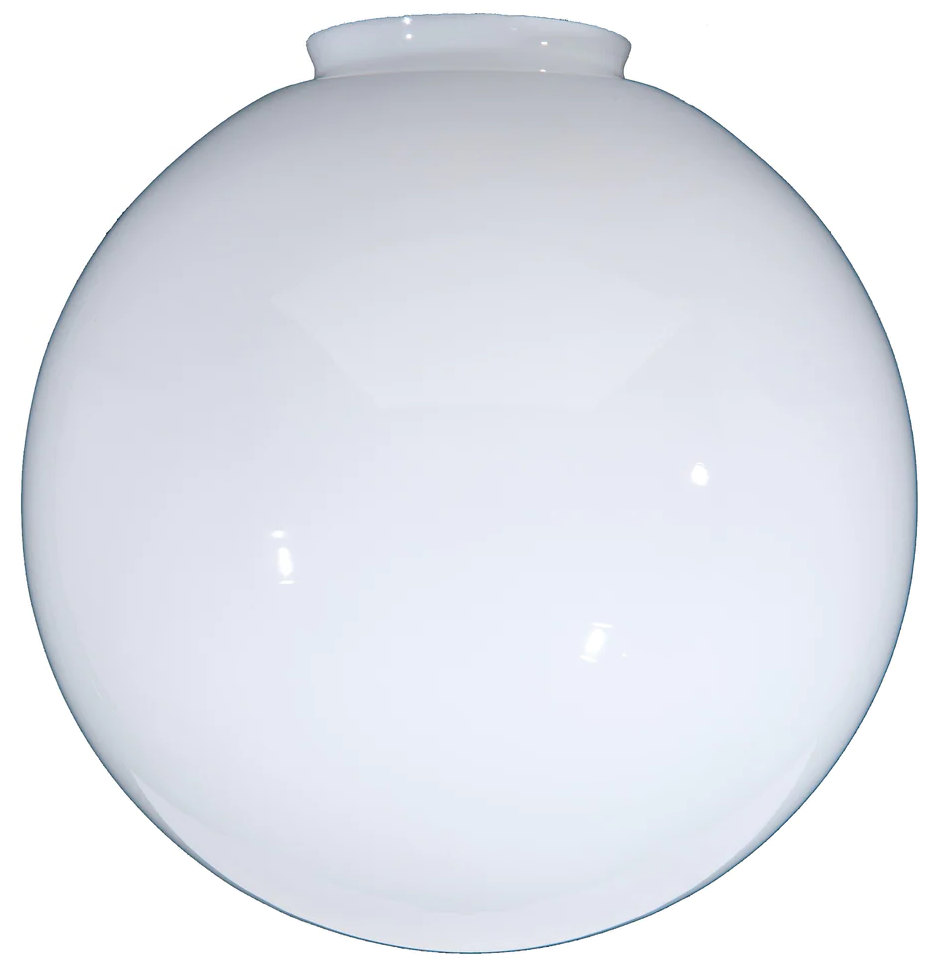

Rest of the House: Opal Glass Ball Lampshades (22)

I made some guesses as to ball size. My largest here is 14". I think I'm undersizing.
