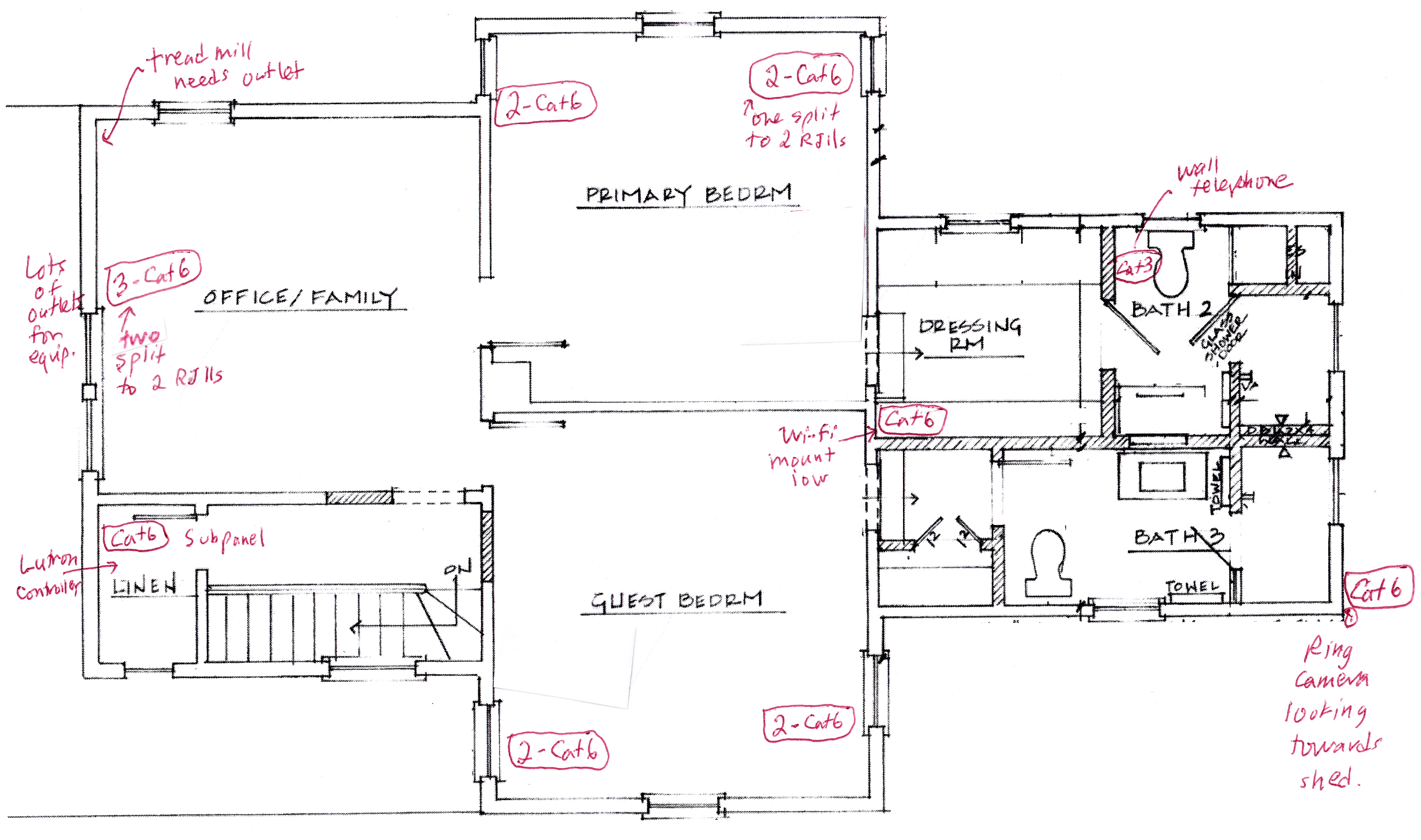

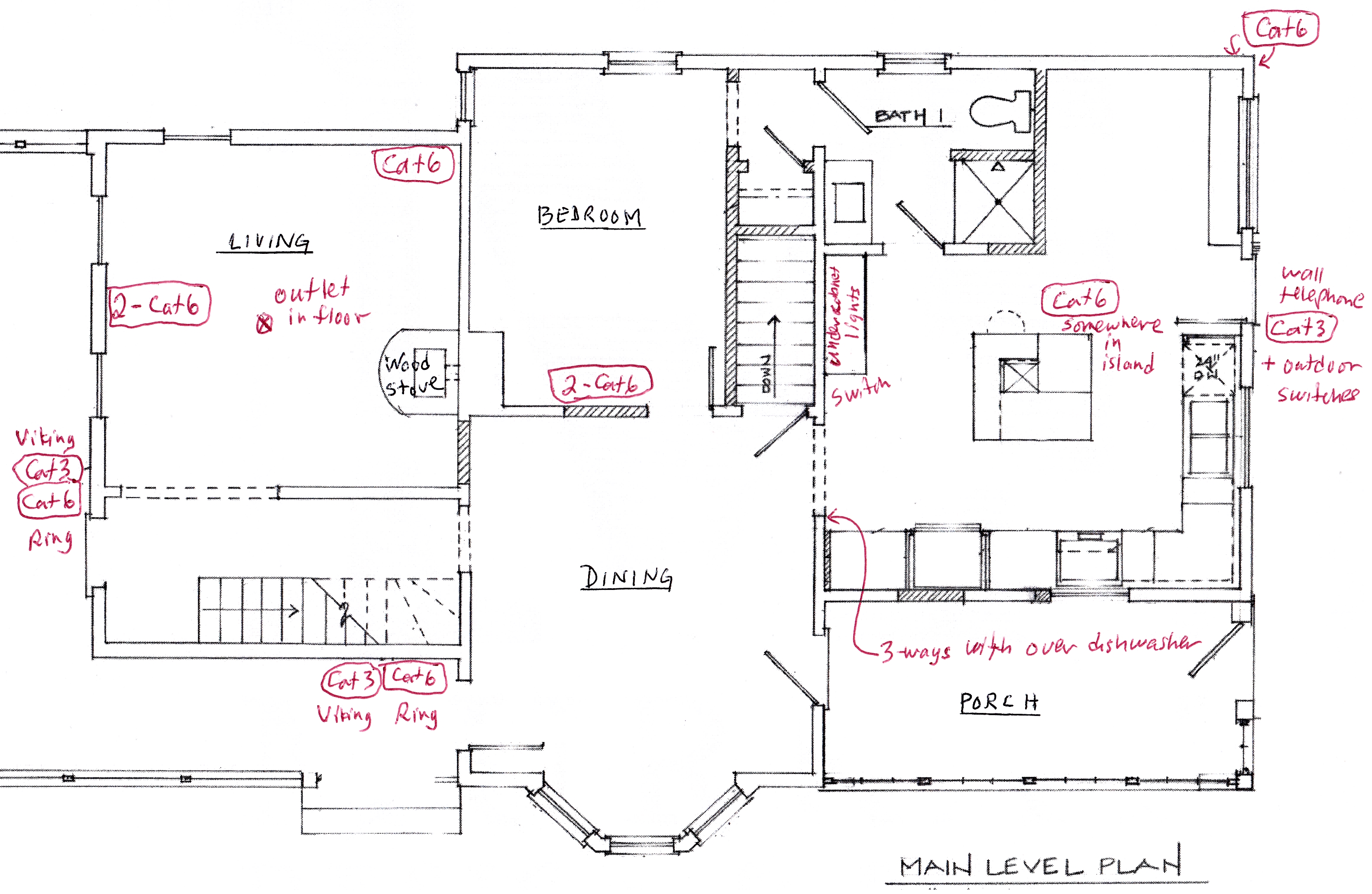

Network/Telephone Jack Locations

Other pages:

Before Work Started
After Demolition
During Construction: Dated Pictures

The Ring PoE cameras are not compatible with the Resideo control system. So I will have two parallel security systems.
Plus the Viking door intercoms, which can listen.

Ring doorbells need chimes, preferrably hard-wired.

There will be four wall telephones (kitchen, primary bath, basement, shed), plus the two intercoms. They can be Cat-3.

I have no floor plans for the basement, but that needs a wall phone and data jack. Data jack in ceiling above project tables.

Inside Shed [shed has to be rebuilt first]:

Wall jack for telephone
Data jack
Rate of rise 135F
Motion detection, or video? e.g. another Ring Stick Up Cam Elite?
Contacts on doors?

Equipment noted below:

Viking W-3000 Door Intercom (each has a transformer, but one can power both) At Walmart
Ring Video Doorbell Elite
Ring Stick Up Cam Elite with PoE Adapter
